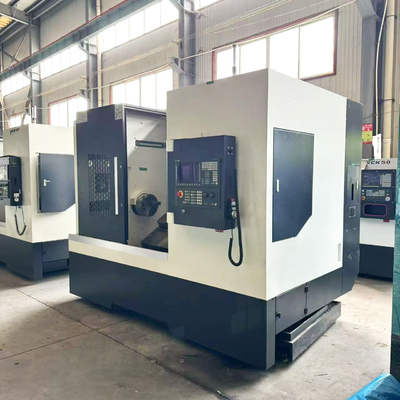

Double Spindle Slant Bed Automatic Cnc Lathe TCK56Y With Sub Spindle Drive Cnc Lathe Turning

Double Spindle Slant Bed Automatic Cnc Lathe TCK56Y With Sub Spindle Drive Cnc Lathe Turning
Double Spindle Slant Bed Automatic Cnc Lathe TCK56Y With Sub Spindle Drive Cnc Lathe Turning Double Spindle Slant Bed Automatic Cnc Lathe TCK56Y With Sub Spindle Drive Cnc Lathe Turning

Grote Afbeelding :  Double Spindle Slant Bed Automatic Cnc Lathe TCK56Y With Sub Spindle Drive Cnc Lathe Turning

Productdetails:
Place of Origin: china
Merknaam: HR
Certificering: ceiso
Model Number: TCK56
Betalen & Verzenden Algemene voorwaarden:
Minimum Order Quantity: 1set
Prijs: usd 29000-40000
Packaging Details: standard export package(plywood case)
Delivery Time: 30days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 40set/month
Contact

Double Spindle Slant Bed Automatic Cnc Lathe TCK56Y With Sub Spindle Drive Cnc Lathe Turning

beschrijving
Max swing over bed Dia.（mm）: Φ630 Maximum cutting diameter (mm): Φ540
X-axis travel (mm): 280 Y-axis travel (mm): ±50
Z-axis travel (mm): 750 X-axis moving speed (mm/min): 24000
Spindle bore (mm): Φ66 Bar through-hole(mm): Φ52

Double Spindle Slant Bed Automatic Cnc Lathe TCK56Y with Sub Spindle Drive Cnc Lathe Turning
Product Introduction
Two axis feed.slant bed cnc turning center lathe machine The whole machine has a compact structure, beautiful appearance, large spindle torque, high rigidity, stable and reliable performance, and excellent accuracy retention. Optimized design of the headstock, suitable for turning of disc and shaft parts. It can process straight, arc, metric and inch threads, and multi-threaded. It is suitable for turning discs and shafts with complex shapes and high precision requirements. Parts Processing.

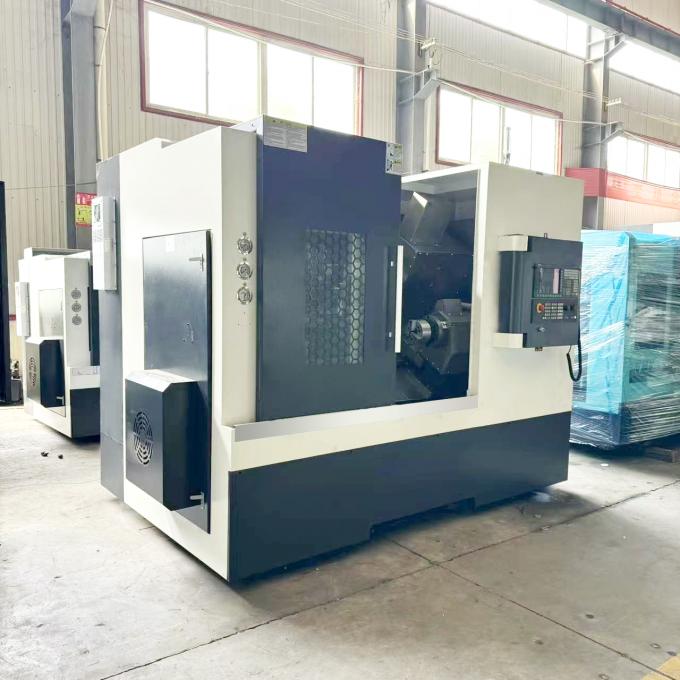

Double Spindle Slant Bed Automatic Cnc Lathe TCK56Y With Sub Spindle Drive Cnc Lathe Turning 0
position
project
TCK56Y
Processing range
Max swing over bed Dia.(mm)
Φ630
Maximum cutting diameter (mm)
Φ540
Maximum cutting length (mm)
Power turret 540
Stroke and Feed
X-axis travel (mm)
280
Y-axis travel (mm)
±50
Z-axis travel (mm)
750
X-axis moving speed (mm/min)
24000
Z-axis moving speed (mm/min)
24000
Handwheel (mm)
0.001/0.01/0.1
X, Z feed speed (mm/min)
0~5000
X, Z manual feed speed (mm/min)
0~1260
Position accuracy
X-axis repeat positioning accuracy (mm)
0.005
X-axis positioning accuracy (mm)
0.008
Z-axis repeat positioning accuracy (mm)
0.006
Z-axis positioning accuracy (mm)
0.008
Spindle
Spindle speed (rpm)
10-3000
Spindle maximum torque (N.m)
72
Spindle taper
A2-6
Spindle bore (mm)
Φ66
Bar through-hole(mm)
Φ52
Chuck
10”

tool holder linear guide way
Number of tool holders
12
Tool change time (s)
0.25
Tool mounting dimension(mm)
25×25
Y-axis travel (mm)
±50
tool holder release/locking time (S)
0.12
Positioning indexing accuracy
±4"
Repeat positioning accuracy
±2"
linear guide way specification
Front 35 ,Rear 25
Tool speed
6000rpm
Power tool size
BMT55/ER32
Maximum weight of turret
300kg
Electric spindle
Spindle taper
A2-5
Spindle bore (mm)
56mm

Spindle outer diameter
170mm
Main motor
Main motor power (kw)
11(4500rpm)
Main motor torque (N.m)
72
X, Z axis
Feed motor
X-axis feed motor power (kw)
2.3
X-axis feed motor torque (N.m)
15
Z-axis feed motor power (kw)
2.3
Z-axis feed motor torque (N.m)
15
Cooling system
Coolant capacity (L)
200
Motor type (1HP) (kw)
0.18
Size
Machine size (length * width * height) (mm)
3400/2060/2100
weight
Machine weight (kg)
5500
Details Images
Double Spindle Slant Bed Automatic Cnc Lathe TCK56Y With Sub Spindle Drive Cnc Lathe Turning 1

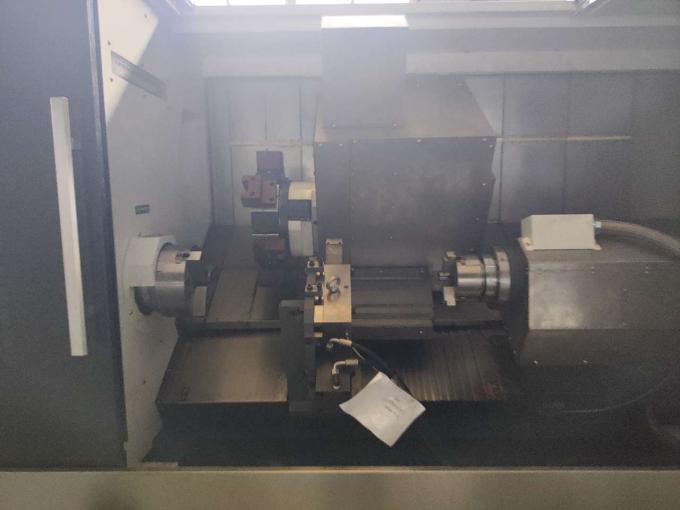

1. Special structure more stronger 2. Heavy loading capacity 3.Easy metal chips falling down
Double Spindle Slant Bed Automatic Cnc Lathe TCK56Y With Sub Spindle Drive Cnc Lathe Turning 2

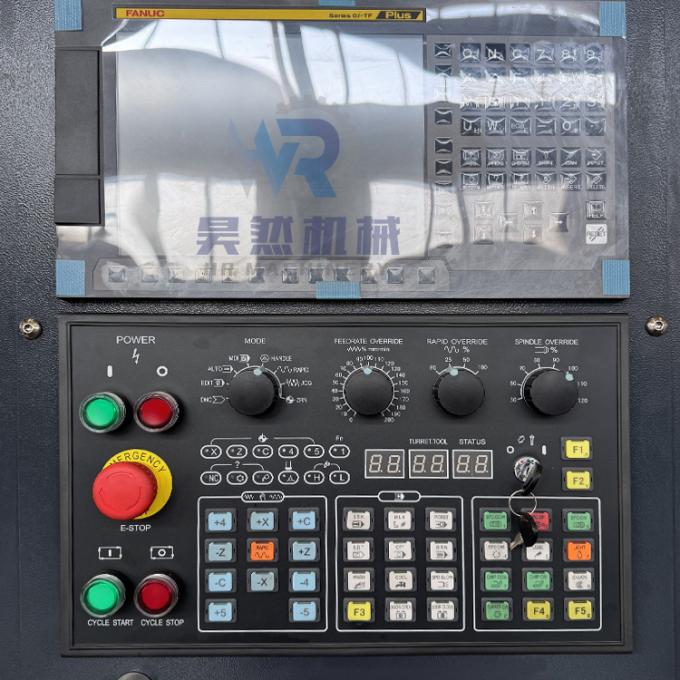

CNC System Optional: Siemens , FANUC ,Syntec GSK Etc.
Double Spindle Slant Bed Automatic Cnc Lathe TCK56Y With Sub Spindle Drive Cnc Lathe Turning 3

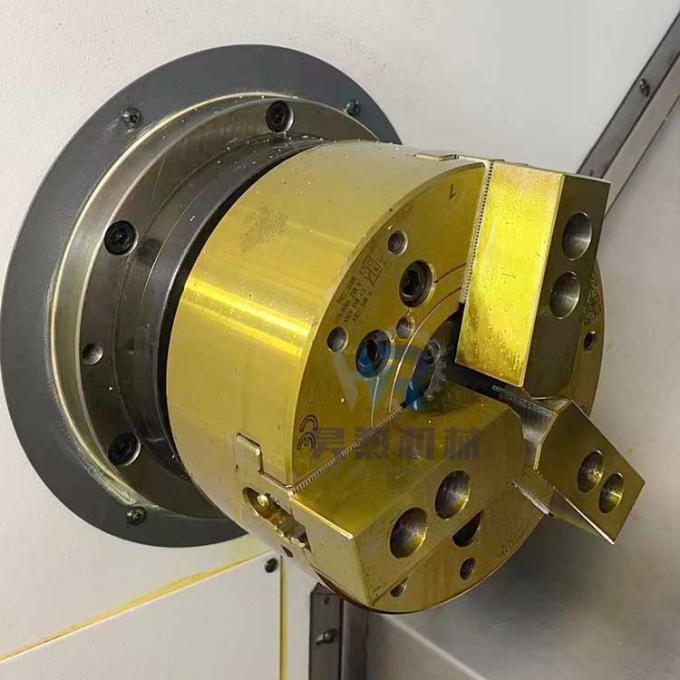

Main spindle
A2-6 main spindle Diameter of spindle through hole: 66mm
Inner diameter of pull through hole: 52mm
Double Spindle Slant Bed Automatic Cnc Lathe TCK56Y With Sub Spindle Drive Cnc Lathe Turning 4

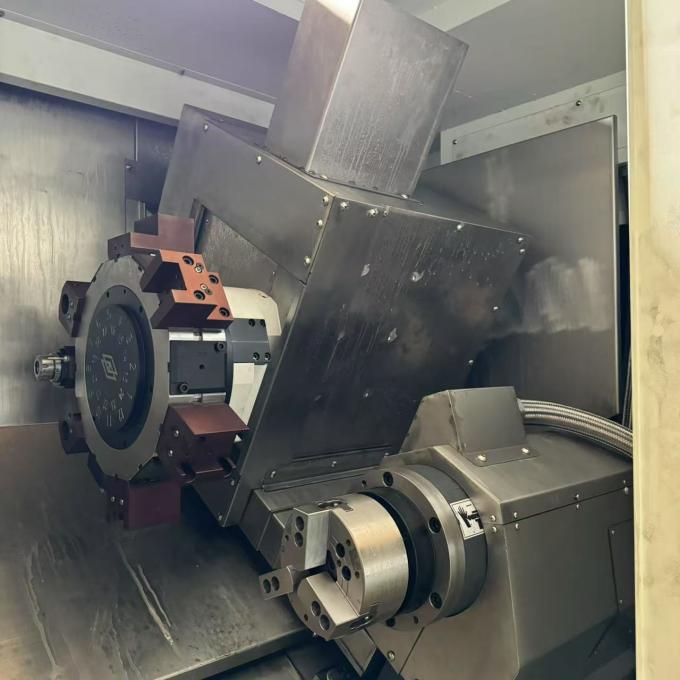

Counter spindle
A2-5 counter spindleDiameter of spindle through hole: 52mm
Inner diameter of pull through hole: 40mm
Double Spindle Slant Bed Automatic Cnc Lathe TCK56Y With Sub Spindle Drive Cnc Lathe Turning 5

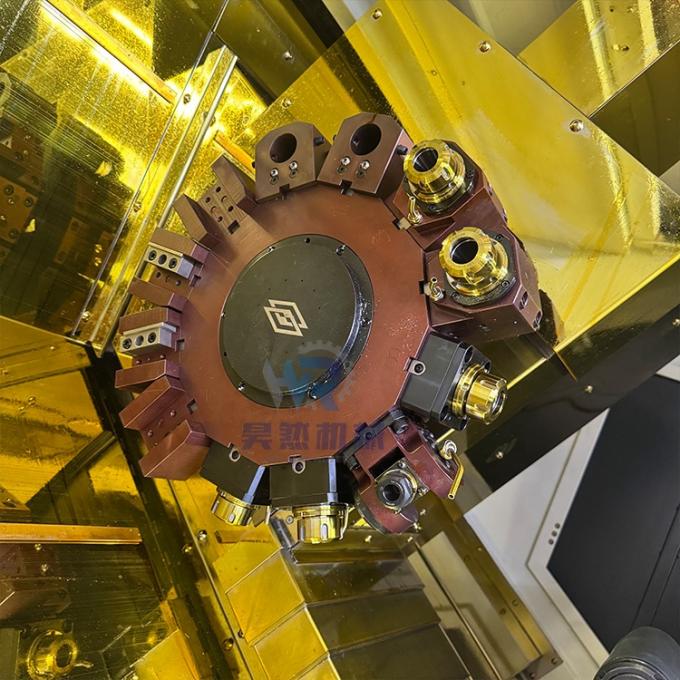

12 stations -power turret, Optional servo turret,
Double Spindle Slant Bed Automatic Cnc Lathe TCK56Y With Sub Spindle Drive Cnc Lathe Turning 6

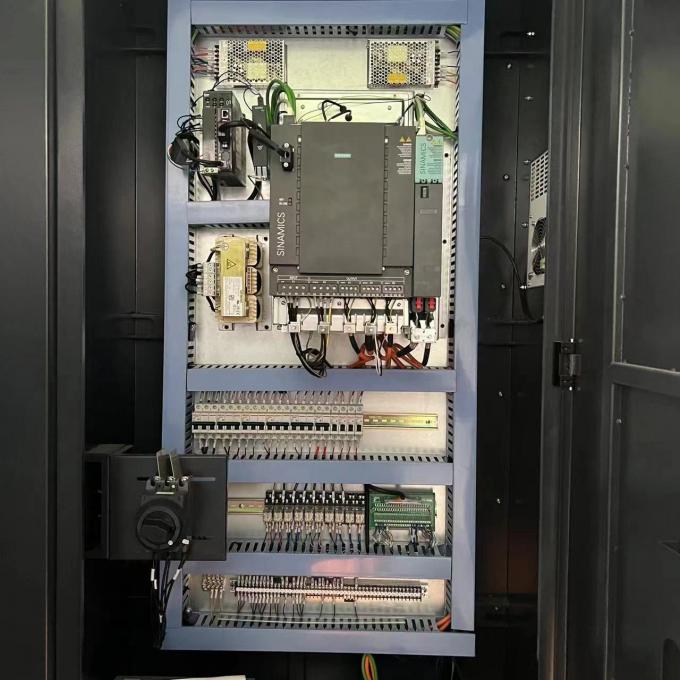

Electric Components
Standard with Schneider
Packing&Shipping
1.Port: Qingdao port or Shanghai port
2.Payment method: T/T, L/C, D/P, D/D etc.
3.Payment: 30% T/T as deposit, 70% balance shall be paid before shipment.
4.Delivery time: 30 days after receive the 30%T/T deposit.
5.Non-fumigation packaging, we use seaworthy plywood.
6. Steel base plate, it is stronger 3-5 times than normal plywood base plate.
7.Water-proof and damp proof, water resistant film wraped all the machine.
8.Fully sheathed case,prevention of collision and keep the goods intact.
Double Spindle Slant Bed Automatic Cnc Lathe TCK56Y With Sub Spindle Drive Cnc Lathe Turning 7
Certifications
All products are available upon request, with or without trademarks. If you need OEM service with your own brand or product, please let us know. If you have any other specific requirements, please feel free to contact us. Our factory has obtained the import and export license issued by the Ministry of foreign trade, and passed the iso9001 quality management system certification and CE certification. In the quality layer by layer, we will wholeheartedly serve for the majority of customers.
Double Spindle Slant Bed Automatic Cnc Lathe TCK56Y With Sub Spindle Drive Cnc Lathe Turning 8
Customer Photos
We welcome customers to visit the factory, we will let you buy, we will have customers to visit the factory and customers online purchase feedback, through feedback learning experience, continuous progress, better service for you. Shandong HR is willing to unremitting pursuit and efforts, hand in hand with merchants to create a brilliant future
Double Spindle Slant Bed Automatic Cnc Lathe TCK56Y With Sub Spindle Drive Cnc Lathe Turning 9
