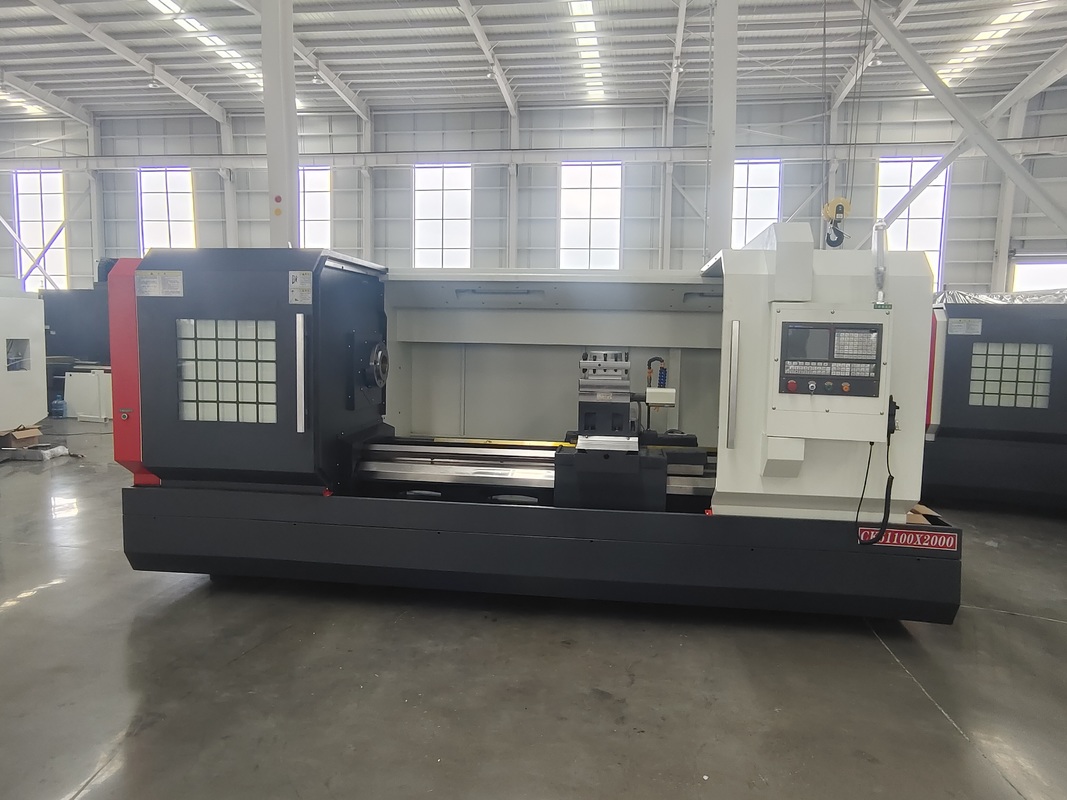

CK61100 CNC Flat Bed Lathe Automatic Fanuc Siemens Mitsubishi Control System

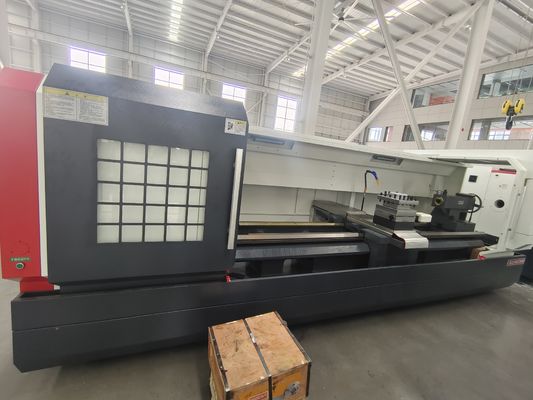

Grote Afbeelding : CK61100 CNC Flat Bed Lathe Automatic Fanuc Siemens Mitsubishi Control System

Productdetails:

Plaats van herkomst:	Chiaan
Merknaam:	HR
Certificering:	CE
Modelnummer:	CK61100

Betalen & Verzenden Algemene voorwaarden:

Min. bestelaantal:	1 set
Prijs:	19999USD
Verpakking Details:	Multiplexbox
Levertijd:	30 werkdagen
Betalingscondities:	L/c, t/t
Levering vermogen:	100sets/maand

Contact

CK61100 CNC Flat Bed Lathe Automatic Fanuc Siemens Mitsubishi Control System

beschrijving

Spanning:	3 Fase 380V 50Hz	Automatisch cijfer:	Automatisch
Power (W):	11/15kW	Voorwaarde:	Nieuw
Max. Schommeldiameter:	1000 mm	CNC of niet:	CNC
Type:	Horizontaal, draaiend midden	After-sales service verstrekt:	Ingenieurs beschikbaar voor servicemachines in het buitenland, online ondersteuning
Garantie:	1 jaar	Spindel boring:	105 mm
Markeren:	CNC flat bed lathe with Fanuc control , automatic CNC lathe machine , Siemens control CNC lathe

Product Description

CNC Lathe use

The machine tool is automatically controlled by the CNC control system to perform various inner holes, outer circles, conical surfaces, arc surfaces, and thread turning. It is especially suitable for rough and fine machining of shafts and disc parts in small and medium batches, with a degree of automation High, simple programming, high precision and other advantages.

Left Elevation

Front Elevation

Right Elevation

CNC Lathe Features

1. A high strength, widening the crriage, suitablefor heavy cutting

2. Four position electricturret
3. Frequency conversion stepless speed regulation
4. Standard configuration: manual chuck
5. Optional configuration:hydraulic chuck

Max. swing over bed(mm)	Φ1000
Max. swing dia. over cross slide(mm)	Φ630
Max.processing length(mm)	1000/1500/2000/3000
Max.processing diameter(mm)	Φ1000
maximum diameter of bar(mm)	Φ630
chuck	630 3jaw or 800 4 jaw
The spindle terminal structure	D11
Diameter of spindle bore(mm)	Φ105
The taper of spindle front-end	1:20
Spindle speeds series	Four files manually/Hydraulic four files
Spindle speeds(r/min)	30-84/53-150/125-350/300-835
X/Z axis travel(mm)	MM350/(1000/1500/2000/3000)
X/Z axis lead screw diameter × pitch(mm)	φ3208/φ5010
X/Z fast moving(m/min)	4/6
Tool post form	Electric vertical
number of work position	4
Tool bar section (turning/boring)	32/40
Sleeve diameter / stroke(mm)	Φ100/250
Sleeve inside the hole taper	MT6
Sleeve driven form	manual
Tailstock body movement form	manual
main motor(kw)	11
Spindle motor torque(nm)	48
Motor of Z axis X(kw)	1.5/2.3
X/Z nm	10/15
Coolant motor power	125w
power capacity	15KVA
Bed saddle layout	Flat bed
Guide form	Harden guide way(＞ HRC50)
Machine weight	4300/4700/5500/6500kg
length × width × height	( 3400/3900/4400/5400 )/1900/2000 mm
